Quality
|
Price
|
| 300-500 |
$13
|
|
500-1000
|
$12.8
|
|
≥1000
|
$12.49
|

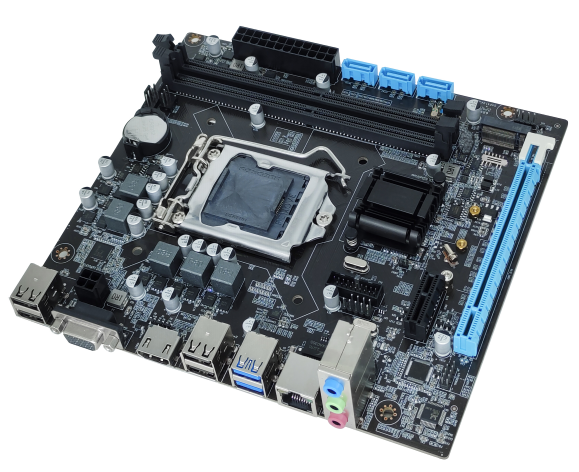

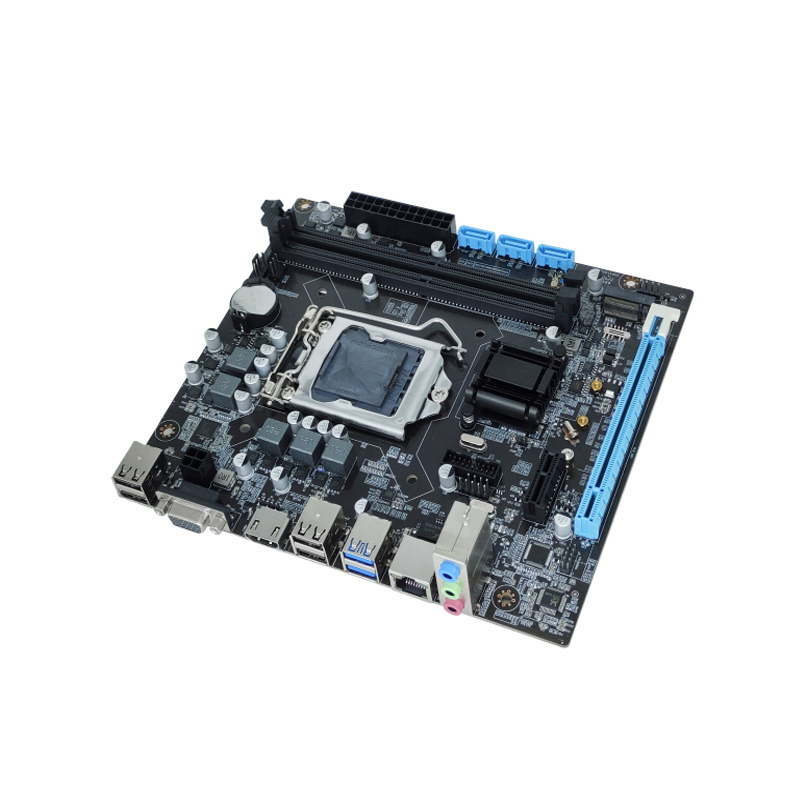

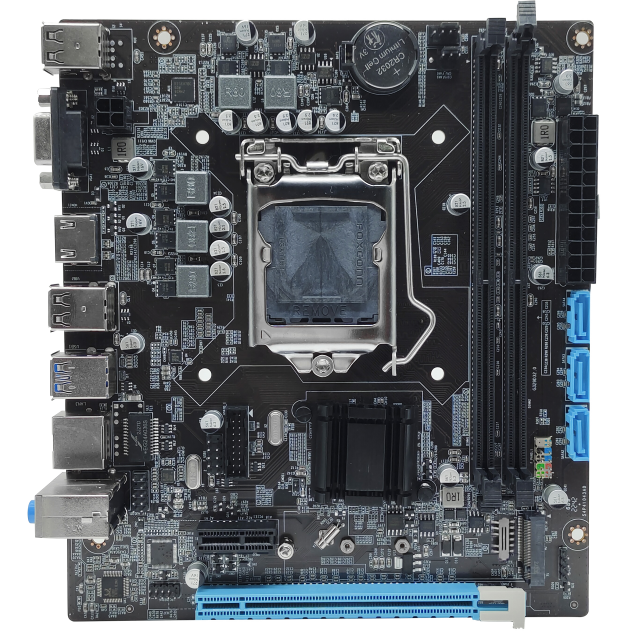

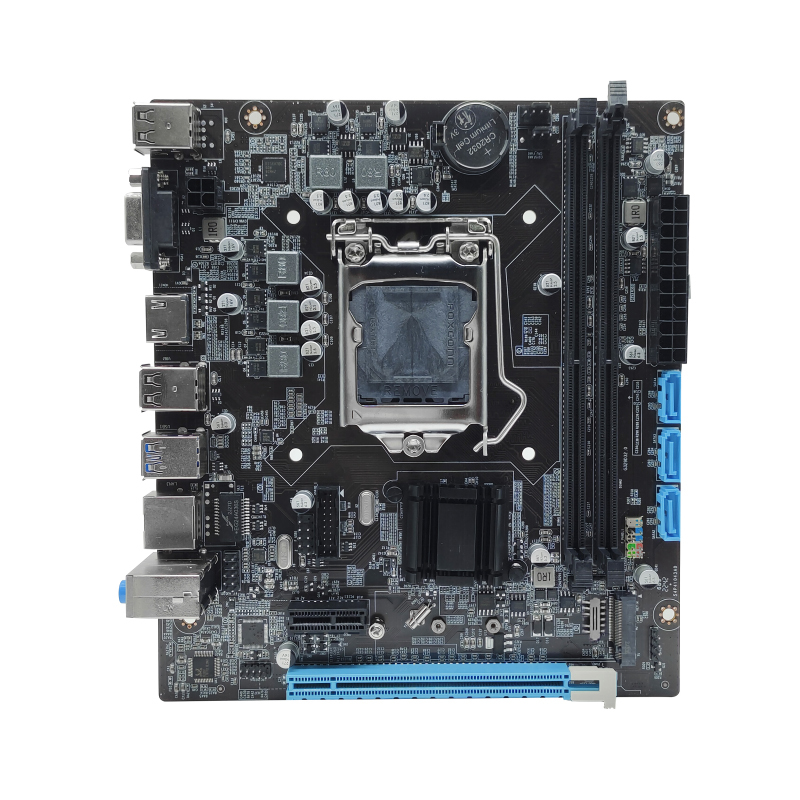

| Model Name | B75 |
| CPU | Supports LGA1155 Socket I3/I5/I7 series CPU |
| Chipset | Intel B75 Express Chipset |
| Memory | 2*240-pin DDRⅢ SDRAM slots Memory up to 16GB Supports dual channal DDR3 1066/1333/1600 MHZ |

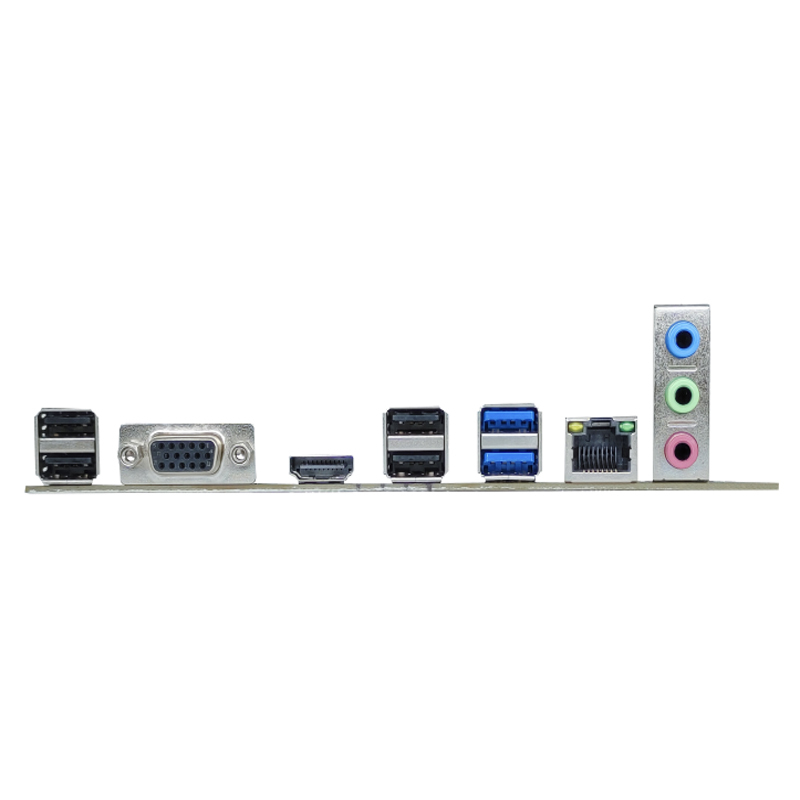

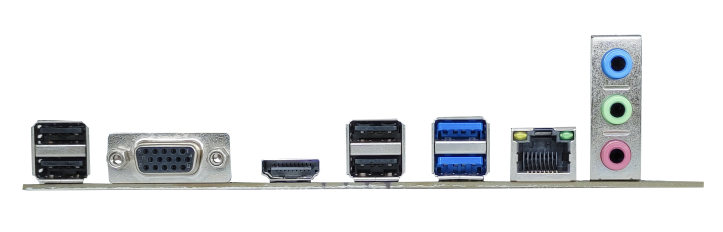

| I/O interface | 1xPS/2 keyboard port,1xPS/2 mouse port 2xUSB2.0 ,2xUSB 3.0 1x VGA port 1x HDMI port 1x RJ45 port 1x 3-in-1 Audio port(line in/line out/MIC in) |
| Onboard interface | 1x 24-pin ATX power connector 1x 4-pin ATX 12V power connector 2x USB connector, can support 4*USB 2.0 1x F-AUDIO connector 1x F-PANEL connector 1x F-SPEAKER connector 1x FAN connector 1x LPC-DEBUG connector |
| Integrated sound | Realtek ALC 6-channal HD Audio Codec onboard provides front audio interface provides front stereo mic interface |
| Storage | 2x SATA 2.0 (3GB/s) ports,1 x SATA 3.0 (6GB/s) ports |
| Integrated lan | Realtek 10/100 Mbps LAN onboard |
| Expansion slot | 1x PCI Express x16 slot 1x PCI Express x1 slot 1x M.2 Nvme/NGFF slot |
| Dimension | Micro-ATX architecture(17*19cm) |
