Quality
|
Price
|
|
100-499
|
$51.49
|
|
500-1000
|
$50.19
|
|
≥2000
|
$49.49
|
| H511G653 | |
| CPU | Supports 10th/11th.CPU (LGA1200) |
| Chipset | Intel H470 Express Chipset |
| Memory | 2*288-pin DDR4 SDRAM slots |
| Memory up to 64 GB | |
| Supports DDR4 3200/2933/2800/2666/2400/2133MHz | |

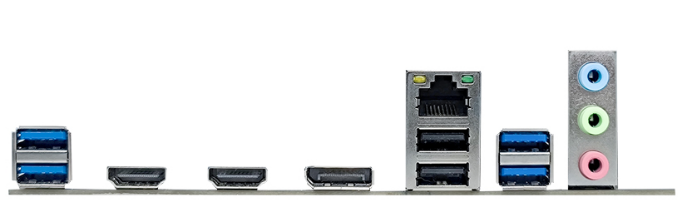

| I/O interface | 2xUSB2.0,4xUSB 3.0 |
| 1xDP port | |
| 2x HDMI port | |
| 1x RJ45 port | |
| 1x 3-in-1 Audio port(line in/line out/MIC in) | |
| Onboard interface |
1x 24-pin ATX power connector |
| 1x8-pin ATX 12V power connector | |
| 2x USB 2.0 connector, can support 4*USB 2.0 | |
| 1x USB 3.0 connector, can support 2*USB 3.0 | |
| 1x F-AUDIO connector | |
| 1x PROT80 connector | |
| 1x F-SPK1 connector | |
| 1x JCMOS1 connector | |
| 2x FAN connector | |
| 1x F-PANEL1 connector | |
| Integrated sound |
Realtek ALC 6-channal HD Audio Codec onboard |
| provides front audio interface | |
| provides front stereo mic interface | |
| Integrated lan | Realtek 100/1000 Mbps LAN onboard |
| Expansion slot |
1x PCIExpressx16 slot,1xPCI Express x1 slot |
| 1x WIFI connevtor | |
| 1x NGFF-M.2 connector | |
| 1x NVME-M.2 connector | |
| Dimension | Micro-ATX architecture(16.8*21.5cm) |
