Quality
|
Price
|
|
100-499
|
$20.49
|
|
500-1000
|
$19.98
|
|
≥1000
|
$19.49
|
| Model Name | H81 |
| CPU | Supports /54th Gen（HASWELL） Intel 22nm CPUs (LGA1150) |
| Chipset | Intel H81 Express Chipset |
| Memory | 2*240-pin DDRⅢ SDRAM slots Memory up to 16GB Supports dual channal DDR3 1066/1333/1600 MHZ |

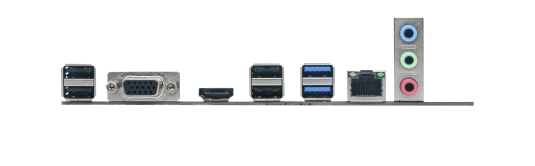

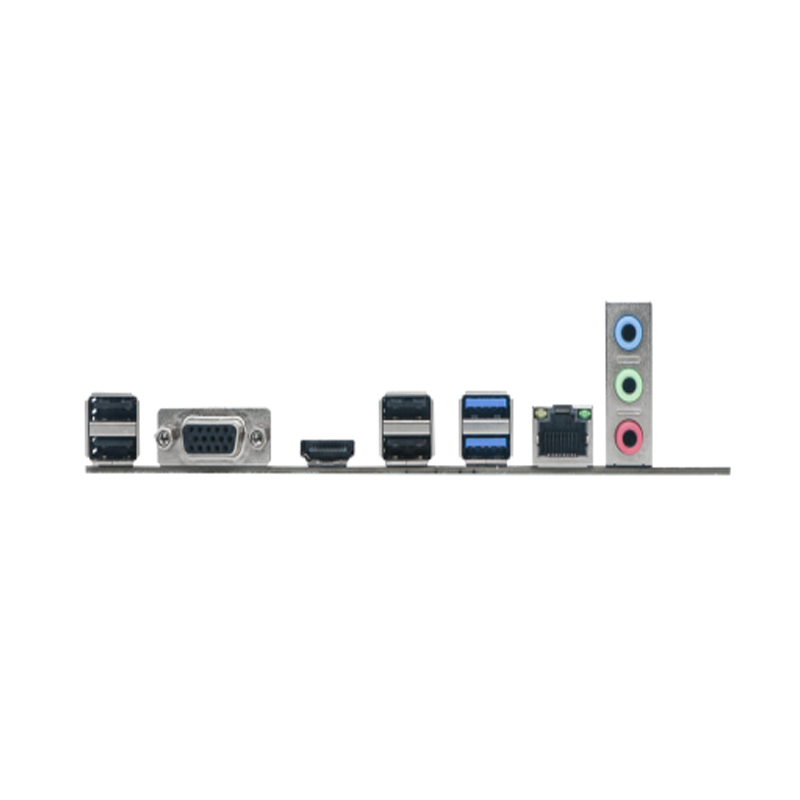

| I/O interface | 4xUSB2.0 2xUSB3.0 1x VGA port 1x HDMI port 1x RJ45 port 1x 3-in-1 Audio port(line in/line out/MIC in) |
| Onboard interface |
1x 24-pin ATX power connector 1x 4-pin ATX 12V power connector 2x USB connector, can support 4*USB 2.0 1x F-AUDIO connector 1x F-PANEL connector 1x F-SPEAKER connector 1x FAN connector 1x LPC-DEBUG connector |
| Integrated sound |
Realtek ALC 6-channal HD Audio Codec onboard provides front audio interface provides front stereo mic interface |
| Storage | 2 x SATA 2.0 (3GB/s) ports,1 x SATA 3.0 (6GB/s) ports |
| Integrated lan | Realtek 10/100 Mbps LAN onboard (1000Mbps optional) |
| Expansion slot |
1x PCI Express x16 slot 1x PCI Express x1 slot 1x M.2 Nvme/NGFF slot |
| Dimension | Micro-ATX architecture(17*19cm) |
